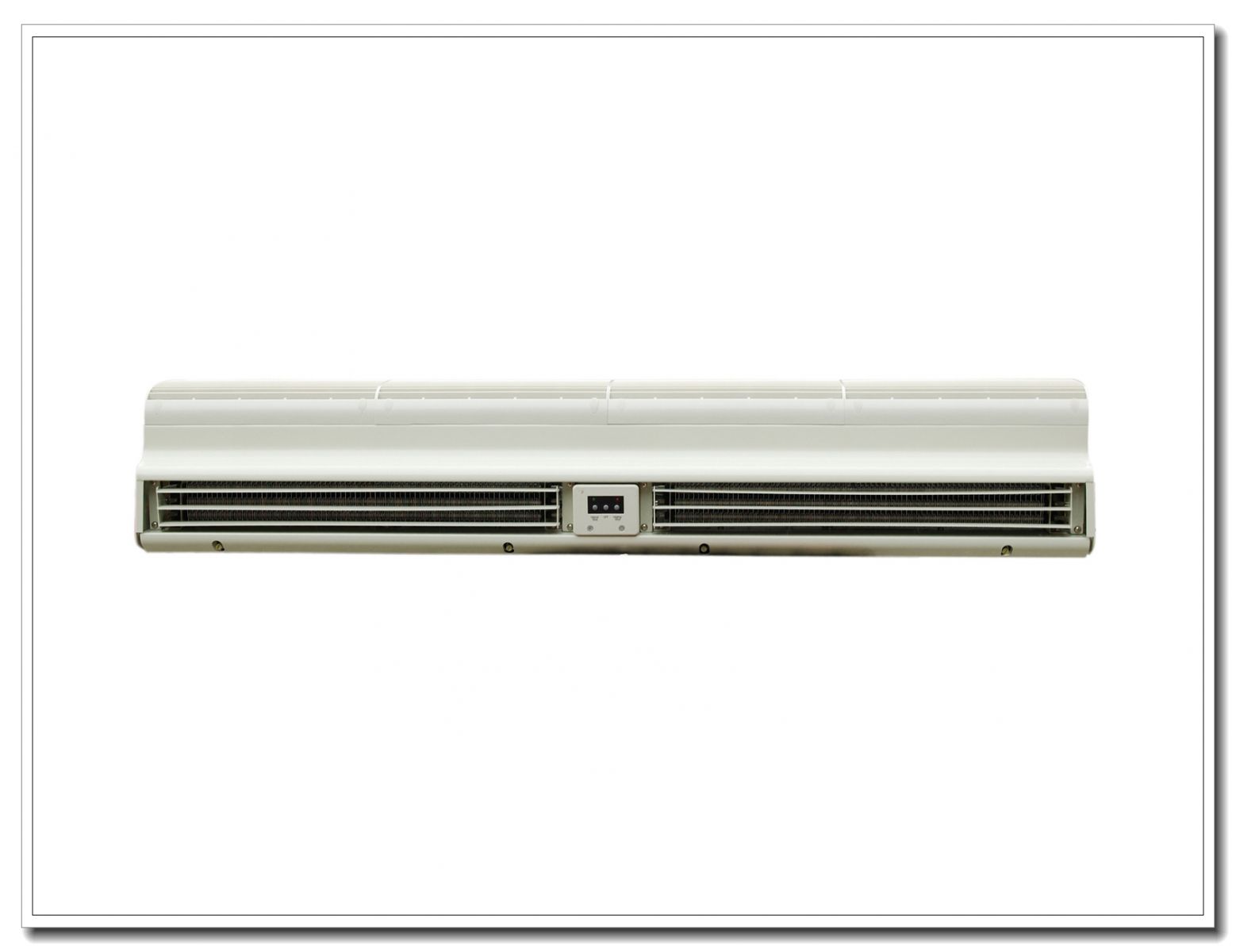

Air Curtain 12512BD
Air Curtain 12512BD
Electrical heated air door with PTC heater. Big air volume, high air speed and low noise level.
Model: FM-1.25-12BD
Type: Cross-flow
Control: Remote control
Length: 1200mm (4ft)
Control: Remote control
Length: 1200mm (4ft)
Blower Diameter: 125mm
Rated Voltage: 220-240v
Rated Frequency: 50Hz
Heater Power: 6000w
Air Speed: >8m/s (1600fpm)
Air Volume: >1640m3/h (966cfm)
Sound Level: < 58dB
Height Validity: <2.3m
Gross Weight: 21.5kgs
Net Weight: 19.5kgs
Case: powder-coated steel
Dimensions: 1200*205*215mm
Packing Size: 1275*256*260mm
Container Loading: 320pcs/20ft, 690pcs/40ft
.jpg)
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| Heated Air Curtain | FM-1.25-09BD | 900 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.25-12BD | 1200 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.25-15BD | 1500 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.5-09B-3D | 900 | 150 | 2.5 | 10 |
| Heated Air Curtain | FM-1.5-12B-3D | 1200 | 150 | 2.5 | 10 |
| Heated Air Curtain | FM-1.5-15B-3D | 1500 | 150 | 2.5 | 10 |
Product Tags: air curtain, air curtains, air door, heated air door, air curtain heater
