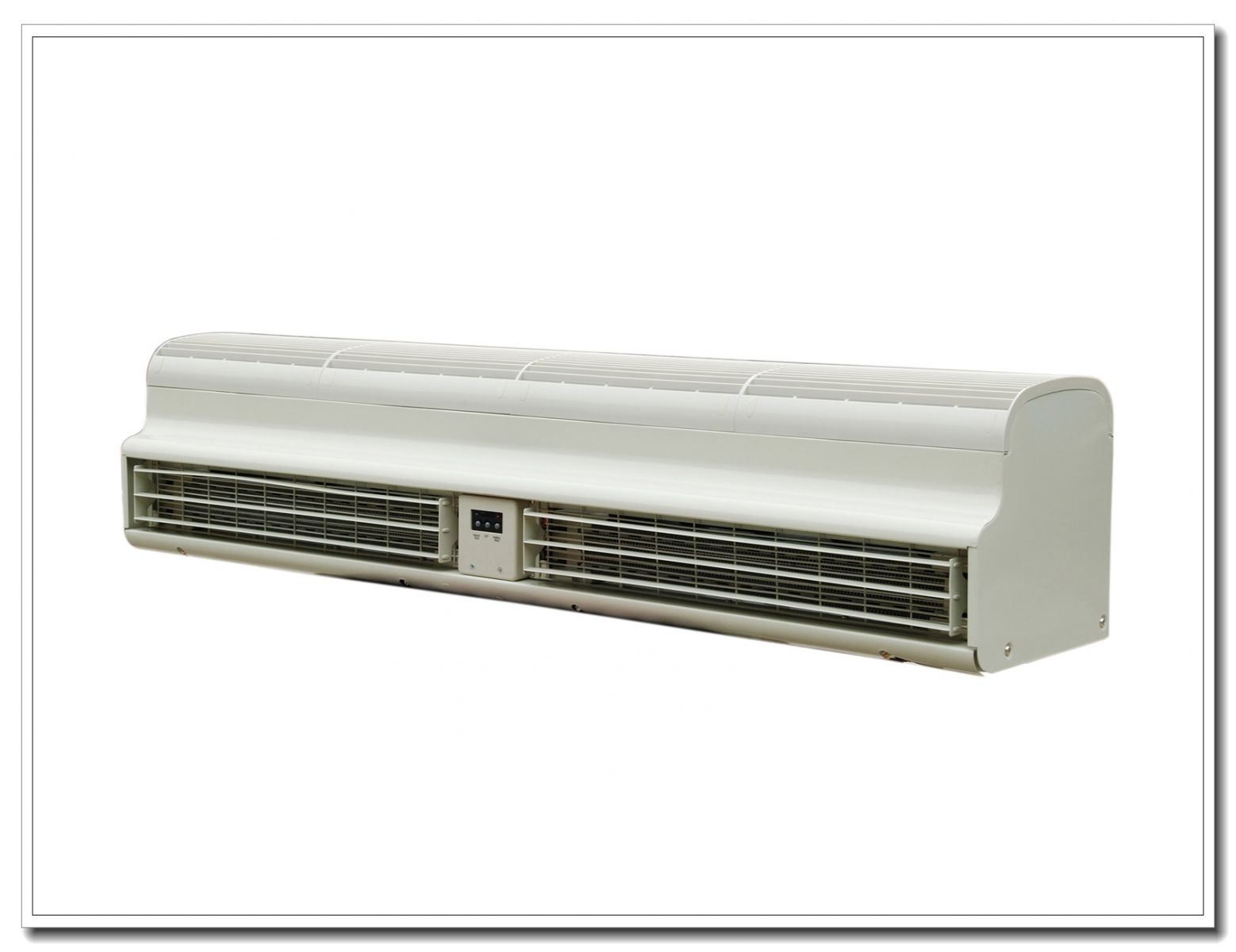

Air Curtain 1515B3D
Air Curtain 1515B3D
Electrical heated air curtain with PTC heater. Big air volume, high air speed and low noise level.
Model: FM-1.5-15B-3D
Type: Cross-flow
Control: Remote control
Length: 1500mm (5ft)
Control: Remote control
Length: 1500mm (5ft)
Blower Diameter: 150mm
Rated Voltage: 380v
Rated Frequency: 50Hz
Heater Power: 12500w
Air Speed: >10m/s (2000fpm)
Air Volume: >3100m3/h (1826cfm)
Sound Level: <63dB
Height Validity: <2.5m
Gross Weight: 35.0kgs
Net Weight: 32.0kgs
Case: powder-coated steel
Dimensions: 1500*266*265mm
Packing Size: 1575*318*325mm
Container Loading: 170pcs/20ft, 365pcs/40ft
.jpg)
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| Heated Air Curtain | FM-1.25-09BD | 900 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.25-12BD | 1200 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.25-15BD | 1500 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.5-09B-3D | 900 | 150 | 2.5 | 10 |
| Heated Air Curtain | FM-1.5-12B-3D | 1200 | 150 | 2.5 | 10 |
| Heated Air Curtain | FM-1.5-15B-3D | 1500 | 150 | 2.5 | 10 |
Product Tags: air curtain, air curtains, air door, heated air curtain, air curtain heater
